An Electronic device that generates repeating or non -  repeating electronic signals in the analog. The signal could be carrier frequency or modulated.



 https://lh3.googleusercontent.com/YrMYpjrM2ygMDHbLMQiNSyXvp5V5ggGEebfdoTBCqUfehlByVVLLCbBcXChiwQn8h6T6GVq30DOegbB67ThGnrQd9chuQxiKWe9veZdxbmtnH8b9Y61dPMvbsEMVAZPjdL_h-JWd

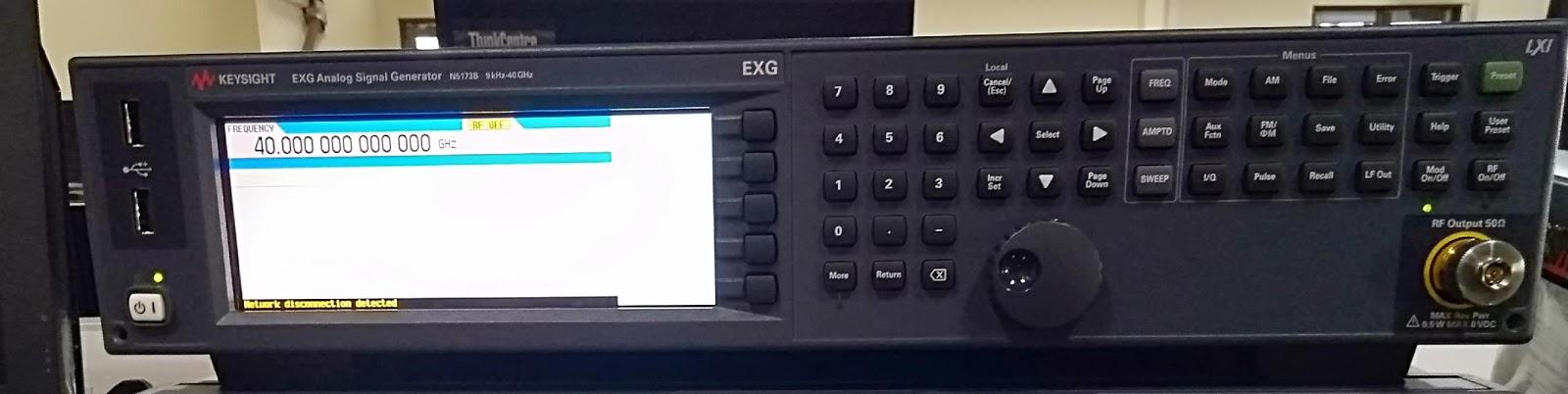

Model : N5173B

Brand : Keysight

Equipment Measurements & Capabilities:

1  Measurement frequency range: 9 kHz to 40 GHz Noise floor: -150 dB
2 Noise floor: -150 dBm
3 Max. output: 11 dBm
4 Modulation for both internal and external AM, FM, PM, Pulse
5 Narrow pulse modulation: 30 ns
6 Generate pulse of various widths and demonstrate the corresponding spectrum characteristics



Status of the Instrument : Active

Location of the Instrument : Nila Campus , IIT Palakkad



Regular Measurements :
